TRUSTWELL

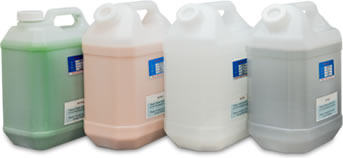

TSW series slurry
As well as the diamond slurry, TRUSTWELL offer slurries produced from general abrasives as main component for lap and polish for metal and brittle materials
| PRODUCT NAME | CHARACTERISTICS | SOLUTION | AVERAGE PARTICLE SIZE(μm) |
|---|---|---|---|
| TSW-100 TSO-100 Diamond Slurry Lubricant |
Composed of strictly classified multiple or single crystal diamond powder. Can be used to polish brittle material to achieve ultra-smooth surface, and be adjusted several kind of concentration for adapting customer’s applications. |
Water-based Oil-based Paste type |
0.05 / 0.08 / 0.1 / 0.5 / 1.0 / 2.0 / 2.5 / 3.0 / 5.0 / etc |
| TSW-200 TSO-200 Alumina Oxide Slurry |
Composed of high purity aluminum oxide for polishing metal, hard glass, and composed semiconductor materials Well balanced polishing efficiency, polishing speed, and easy removal from polishing particles. |
Water-based Oil-based Paste type |
0.1 / 0.2 / 0.5 / 0.7 / 0.8 / 1.0 / 1.2 / 2.0 / 3.0 / etc |
| TSW-300 Cerium Oxide Slurry |
Mainly composed of high purity cerium oxide and well balanced polishing efficiency, surface quality, and easy removal from polishing particles. Well dispersed and suitable for polishing glass materials. |
Water-based | 0.8〜3.0(micron) |
| TSW-500 Chromium Oxide Slurry |
Composed of high purity chromium oxide for polishing silicon wafers, sapphire wafers, and others. | Water-based | 1.0 |
Diamond Paste
TRUSTWELL diamond paste TP series, you can choose the proper sizes in two types of abrasive grains, polycrystalline and single crystal diamond. Solvents also are available two types of oil and water-base.
TP-100
| Solvent | |
|---|---|
| Oil-base | O |
| Water-base | W |
| Abrasive | |
|---|---|
| Polycrystalline | P |
| Single crystal | S |
| Concentration | |
|---|---|
| High | H |
| Middle | M |
| Low | L |
FEATIRES
- Using precise classified TMD series diamond
- Well dispersed and high removal rate
- Concentration and viscosity are adjusted to grain size
| Size | Average size | |
|---|---|---|
| 1/2 | 0-1 | 0.60 |
| 1.0 | 0-2 | 1.00 |
| 3.0 | 2-4 | 3.00 |
| 4.0 | 2-6 | 4.20 |
| 6.0 | 4-8 | 6.30 |
| 9.0 | 6-12 | 9.00 |
