CBN

PRODUCT LINE

MESH SIZE CBN POWDER

PRODUCT NAME CHARACTERISTICS SIZE
CBN-800

Bonding Material：Resin

Resin Black,low toughness,easily fragile, monocrystalline,suited for resin bond systems and grinding in low temperature.		 40/50 50/60 60/80 80/100 100/120 120/140 140/170
● ● ● ● ●
170/200 200/230 230/270 270/325 325/400 400/500
● ● ● ● ● ●
CBN-810

Bonding Material：Resin / Vitrified

Resin vitrified Black,irregular shape, semi-toughness,angular shapes provide increased grinding efficiency in vitrified and resin bond.		 40/50 50/60 60/80 80/100 100/120 120/140 140/170
● ● ● ● ●
170/200 200/230 230/270 270/325 325/400 400/500
● ● ● ● ● ●
CBN-850

Bonding Material：Resin / Vitrified

Black,semi-blocky,semi-toughness,high thermal stability.Optimum balance of fracture strength and break down characteristics to enhance wheel life and grinding efficiency.Most widely used in vitrified bond systems.		 40/50 50/60 60/80 80/100 100/120 120/140 140/170
● ● ● ● ●
170/200 200/230 230/270 270/325 325/400 400/500
● ● ● ● ● ●
CBN-880

Bonding Material：Resin / Vitrified

Black,semi-blocky,semi-toughness,high thermal stability.Optimum balance of fracture strength and break down characteristics to enhance wheel life and grinding efficiency.Most widely used in vitrified bond systems.		 40/50 50/60 60/80 80/100 100/120 120/140 140/170
● ● ● ● ●
170/200 200/230 230/270 270/325 325/400 400/500
● ● ● ● ● ●
CBN-901

Bonding Material：Resin / Vitrified

Resin vitrified Amber, medium strength, irregular shape and excellent self-sharpen ability. Used for resin bond system.		 40/50 50/60 60/80 80/100 100/120 120/140 140/170
● ● ● ● ●
170/200 200/230 230/270 270/325 325/400 400/500
● ● ● ● ●
CBN-902

Bonding Material：Metal Electroplated

Metal Electroplated Amber, medium strength, blocky shape and excellent self-sharpen ability. Suitable for electroplated tools and metal bond system.		 40/50 50/60 60/80 80/100 100/120 120/140 140/170
● ● ● ● ●
170/200 200/230 230/270 270/325 325/400 400/500
● ● ● ● ● ●
CBN-950

Bonding Material：Vitrified / Metal / Electroplated

Vitrified Metal Electroplated Gold, blocky, regular with high strength, and stable used in electroplated tool and metal bond applications.		 40/50 50/60 60/80 80/100 100/120 120/140 140/170
● ● ● ● ●
170/200 200/230 230/270 270/325 325/400 400/500
● ● ● ● ●
CBN-980

Bonding Material：Resin / Vitrified / Metal

Resin Vitrified Metal Dark brown,irregular monocrystalline with sharp edge,tough,high thermal stability.Used in vitrified bond, metal bond and heavy-duty resin bond applications.		 40/50 50/60 60/80 80/100 100/120 120/140 140/170
● ● ● ● ●
170/200 200/230 230/270 270/325 325/400 400/500
● ● ● ● ● ●
CBN-982

Bonding Material：Vitrified / Metal / Electroplated

Vitrified Metal Electroplated Dark brown, blocky, regular with sharp edge,tough,high thermal stability used in metal bond applications.		 40/50 50/60 60/80 80/100 100/120 120/140 140/170
● ● ● ● ●
170/200 200/230 230/270 270/325 325/400 400/500
● ● ● ● ●

MESH SIZE CBN COATED POWDER

CBN-Ni Coat

CBN-Ni Coat

Electroplating product can be plated 30%, 56% and 60%. High pullout strength and heatsinking capability among the grains are greatly enhanced, grinding wheel service life.		 CBN-Ti Coat

CBN-Ti Coat

Titanum coated product., Higher temperature resistance and greatly improved grinding wheel service life.

MICRON SIZE CBN POWDER

PRODUCT NAME CHARACTERISTICS SIZE (μm)
There are two colors of black and white. Black CBN-M850 for lapping and grinding, and white CBN-M990 for raw material for PCBN. 0-1/2 0-1 0-1.5 0-2 1/2-1.5 1/2-2 0-3 1-2 1/2-3
2-3 2-4 2-6 4-6 3-8 4-8 5-10 5-12 6-12
8-16 8-20 10-20 12-25 20-25 20-30 20-40 30-40 40-60

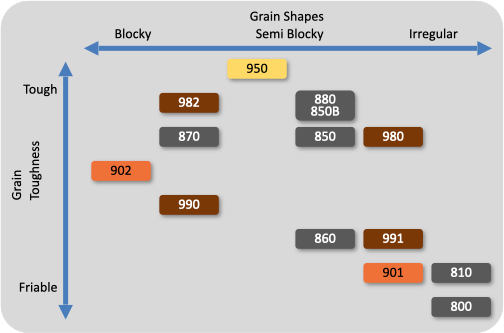

Physical Properties Comparison Table

Physical Properties Comparison Table
