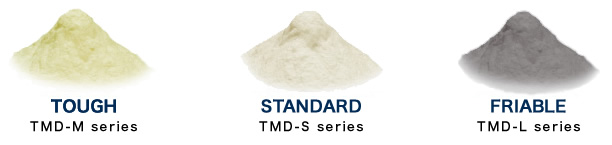

3 kinds, TOUGH・STANDARD・FRIABLE of toughness grains are provided by managing raw materials of micron size products.

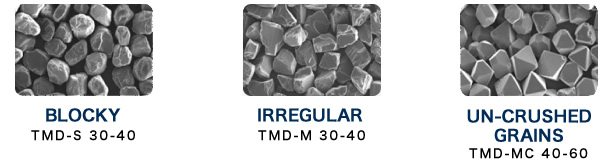

3 kinds, Blocky・Irregular・Un-crushed grains are provided.
PRODUCT NAME | CHARACTERISTICS | ||
---|---|---|---|
TMD | STANDARD |
General and versatile use abrasive grain for wrapping, polishing, and slicing of cemented carbide, sapphire, ceramics, and etc. We classified the primary, secondary, and tertiary in our TW / TMD grains. It is suitable for applications that require precision finish surface. Specifications for précised sort will meet the needs of the individual. |
|
TMD-S | FIRST SORT PRODUCT |
||
TMD-SA | SECOND SORT PRODUCT |
||
TMD-SS | PRECISELY SORT PRODUCT |
||
TMD-L | FRIABLE PRODUCT | Black color grains crushed from pure resin bond type diamond and has well friability and sharpness and suitable for high concentrated tool. | |
TMD-LS | FIRST SORT PRODUCT |
||
TMD-LA | SECOND SORT PRODUCT |
||
TMD-LSS | PRECISELY SORT PRODUCT |
||
TMD-M | TOUGH PRODUCT | Yellow color, very clean less impurity grains crushed from pure metal bond type diamond and has very tough crystallization. | |
TMD-MS | FIRST SORT PRODUCT |
||
TMD-MA | SECOND SORT PRODUCT |
||
TMD-MSS | PRECISELY SORT PRODUCT |
||
TMD-B | COST EFFICIENCY PRODUCT |
A product of the field not require an emphasis on the economy and strict classification. | |
TMD-MC | QUASI MONOCRYSTAL PRODUCT |
Un-crushed and mainly cube-octahedral grains is extremely tough and has well impact resistance and wear resistance. | |
TMD-MC-TI | TITANIUM COAT PRODUCT |
||
TMD-PC2 | POLYCRYSTAL PRODUCT |
Polycrystaline diamond through coagulation binding by synthesized fine grains. Well performance for polishing brittle material such as sapphire and SiC. | |
TMD-PC2S | COARSE GRAIN SORT PRODUCT |
TMD-MC | |||||
TMD-M | TMD-MS | TMD-MA | TMD-MSS | ||
TMD-C | TMD-B | TMD・TMD-S | TMD-SA | TMD-SS | |
TMD-L | TMD-LS | TMD-LA | TMD-LSS | ||
TMD-PC2 | TMD-PC2S |
SIZE | AVERAGE SIZE(μm) | PRODUCT NAME | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
TMD | TMD-S | TMD-SA | TMD-SS | TMD-L TMD-M |
TMD-LS TMD-MS |
TMD-LA TMD-MA |
TMD-B TMD-C |
TMD-PC2 TMD-PC2S |
||
0-0.10 | 0.05 | ● | 1/20 | |||||||
0-0.15 | 0.08 | ● | ||||||||
0-0.20 | 0.10 | ● | 1/10 | |||||||
0-1/4 | 0.25 | ● | ● | ● | 1/8 | |||||
0-1/2 | 0.45 | ● | ● | ● | 1/4 | |||||
0-1 | 0.60 | ● | ● | ● | ● | 1/2 | ||||
0-1.5 | 0.80 | ● | ● | ● | ● | |||||
0-2 | 1.00 | ● | ● | ● | ● | 1.0 | ||||
1/2-1.5 | 1.10 | ● | ● | ● | ● | |||||
1/2-2 | 1.20 | ● | ● | ● | ● | |||||
0-3 | 1.30 | ● | ● | ● | ● | 1.5 | ||||
1-2 | 1.40 | ● | ● | ● | ● | |||||
1/2-3 | 1.60 | ● | ● | ● | ● | 2.0 | ||||
2-3 | 1.80 | ● | ● | ● | ● | 2.5 | ||||
2-4 | 2.20 | ● | ● | ● | ● | ● | ● | ● | 3.0 | |
2-6 | 2.80 | ● | ● | ● | ● | ● | ● | ● | 3.5 | |
4-6 | 3.50 | ● | ● | ● | ● | ● | ● | ● | 4.0 | |
3-8 | 4.30 | ● | ● | ● | ● | ● | ● | ● | 5.0 | |
4-8 | 5.00 | ● | ● | ● | ● | ● | ● | ● | 6.0 | |
5-10 | 5.60 | ● | ● | ● | ● | ● | ● | ● | 7.0 | |
5-12 | 6.50 | ● | ● | ● | ● | ● | ● | ● | ||
6-12 | 7.50 | ● | ● | ● | ● | ● | ● | ● | 9.0 | |
8-16 | 9.00 | ● | ● | ● | ● | ● | ● | ● | ||
8-20 | 11.50 | ● | ● | ● | ● | ● | ● | ● | ||
10-20 | 13.00 | ● | ● | ● | ● | ● | ● | ● | ||
12-25 | 16.00 | ● | ● | ● | ● | ● | ● | ● | ||
20-25 | 18.00 | ● | ● | ● | ● | ● | ● | ● | ||
20-30 | 20.00 | ● | ● | ● | ● | ● | ● | ● | ||
20-40 | 25.00 | ● | ● | ● | ● | ● | ● | ● | ||
30-40 | 28.00 | ● | ● | ● | ● | ● | ● | ● | ||
40-60 | 36.00 | ● | ● | ● | ● | ● | ● | ● | ||
50-70 | 50.00 | ● |
Please contact us for Ni and Ti coat products.

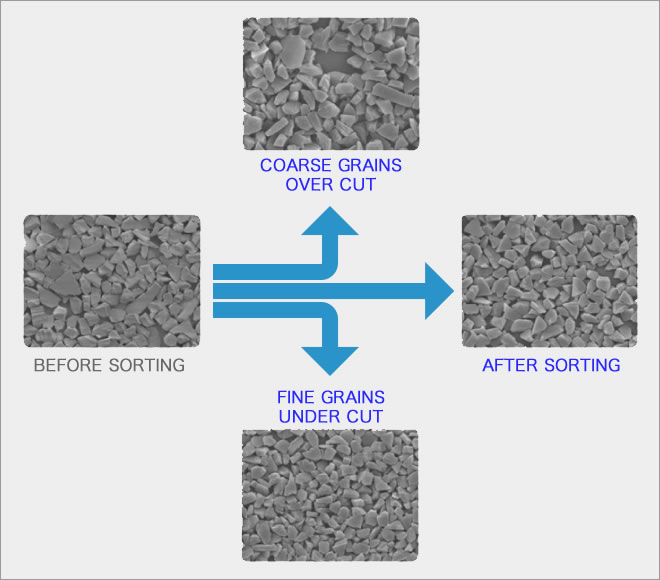

Our own sorting process removes both / either coarse size grains which tend to damage processed surface and fine size grains which tend to cluster from the original micron size diamond grain distribution.
GRAIN TYPES | FIRST SORT | SECOND SORT | PRECISION SORT |
---|---|---|---|
STANDARD | TMD-S | TMD-SA | TMD-SS |
FRIABLE | TMD-LS | TMD-LA | TMD-LSS |
TOUGH | TMD-MS | TMD-MA | TMD-MSS |
Over-cut and under-cut 2 steps classification process or either process are available at the request of customers.
